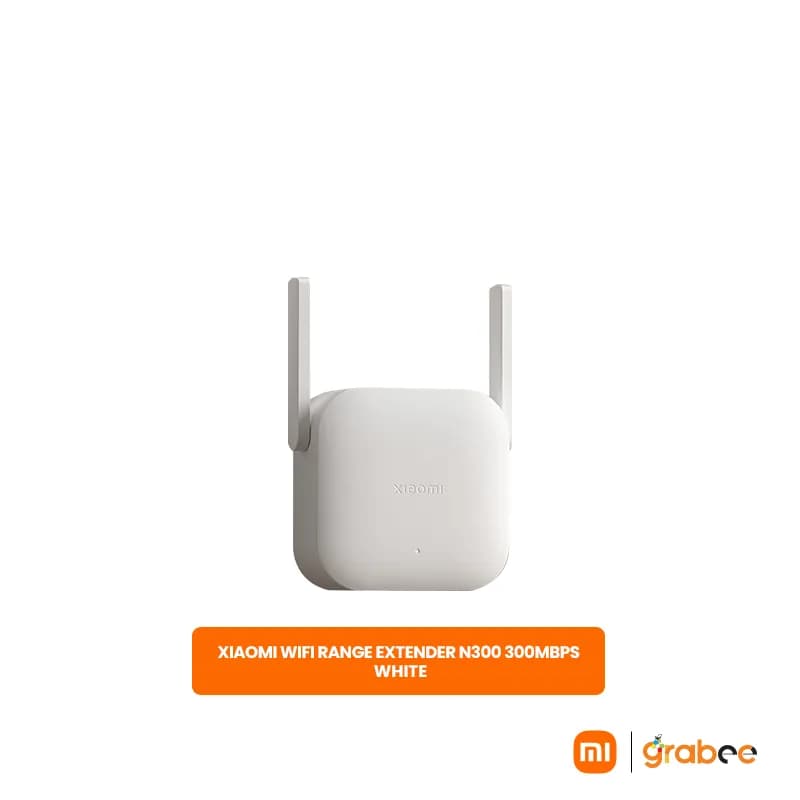

Xiaomi WiFi Range Extender N300 300Mbps

Xiaomi WiFi Range Extender N300 - Technical Specifications

1. General Specifications

• Model: RD10 / RD10M

• Dimensions: 80 × 54 × 70 mm (W × D × H)

• Weight: Not specified

• Antenna: 2 × external antennas (2×2 MIMO)

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 10% to 90% RH (non-condensing)

• Power Supply: 100–240V AC, 0.35A (universal input)

• Power Consumption: 3.57W (max)

---

2. Wireless Specifications

• Wireless Standard: IEEE 802.11b/g/n (Wi-Fi 4)

• Frequency Band: 2.4GHz single-band

• Max Signal Rate: Up to 300Mbps

• Security: WPA-PSK / WPA2-PSK encryption

• Device Support: Up to 16 simultaneous connections

---

3. Performance Features

• Coverage Extension: Expands existing Wi-Fi network range

• Connection Mode: Wireless connection to main router

• Automatic Optimization: Selects best connection automatically

• LED Indicators: Signal strength and status lights

---

4. Compatibility

• Routers: Compatible with most standard Wi-Fi routers

• Devices: Smartphones, tablets, laptops, smart TVs, gaming consoles, IoT devices

• Network Requirements: Existing 2.4GHz Wi-Fi network

---

5. Setup & Management

• Setup Method: WPS button (one-touch) or web interface

• Management: Browser-based configuration page

• Reset Button: Factory reset option

---

6. Package Contents

• Xiaomi WiFi Range Extender N300 ×1

• User Manual ×1

• Warranty Notice ×1
