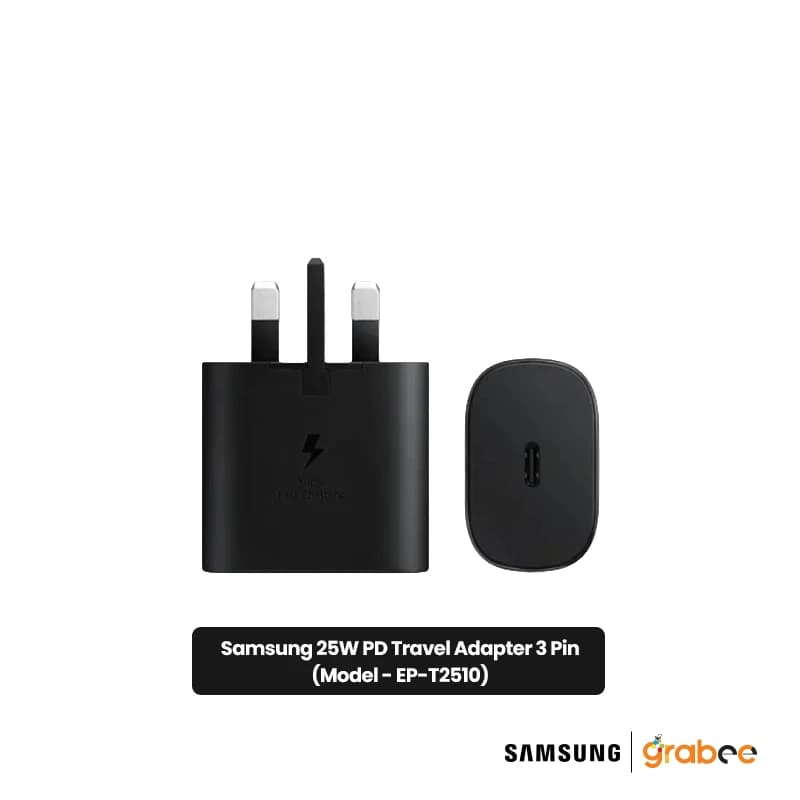

Samsung 25W PD Travel Adapter 3 Pin (Model - EP-T2510)

Samsung 25W PD Travel Adapter - Technical Specifications

1. General Specifications

• Model: EP-T2510 (3 Pin)

• Type: Wall Charger / Travel Adapter

• Fast Charging: Super Fast Charging 25W

• Compatibility: Samsung Galaxy S10 5G, A80, A70, and future compatible devices

• Interface: USB Type-C (single port)

• Dimensions: 49.0 × 27.1 × 68.74 mm (W × H × D)

• Weight: 87.7g

• Plug Type: 3-pin (region specific)

---

2. Power Specifications

• Input Voltage: 100–240V AC (50/60Hz) – Worldwide compatibility

• Output Power: 25W maximum

• Standby Power Consumption: <5mW (energy efficient)

• Fast Charging Protocol: Power Delivery 3.0 with PPS (Programmable Power Supply)

---

3. Output Profiles

• Normal Charge (Fixed): 5V / 3A (15W)

• Fast Charge (PDO): 9V / 2.77A (25W)

• Fast Charge (PPS):

  • 3.3–5.9V / 3.0A (up to 17.7W)

  • 3.3–11.0V / 2.25A (up to 24.75W)

---

4. Safety & Certification

• Protections: Over-current, over-voltage, short-circuit, temperature control

• Certifications: CE, FCC, RoHS, KC (region dependent)

• Efficiency: High conversion efficiency (>85% typical)

---

5. Design & Build

• Material: Flame-retardant PC plastic

• Plug Type: Fixed 3-pin plug (non-foldable)

• LED Indicator: No charging status light

• Compact Design: Travel-friendly size

---

6. Device Compatibility

• Samsung Devices: Optimized for Super Fast Charging 2.0

• Other Devices: Compatible with any USB-C device supporting PD/PPS

• Laptops/Tablets: Can charge compatible laptops up to 25W (e.g., lightweight ultrabooks)

---

7. Included Accessories

• Samsung 25W Travel Adapter ×1

• User Leaflet / Safety Guide
